Build Your First Workflow

You can think of Temporal as a sort of "cure-all" for the pains you experience as a developer when trying to build reliable applications. Whether you're writing a complex transaction-based Workflow or working with remote APIs, you know that creating reliable applications is a complex process.

Temporal beginner
Part 1: Build Your First Workflow
Part 2: Failure Simulation

Introduction​

In this tutorial, you'll build and run your first Temporal Application. You'll learn how to construct Workflows and Activities, understand the core building blocks, and see you can get full visibility into its execution.

Prerequisites​

Before starting this tutorial:

  • Set up a local development environment for developing Temporal Applications
  • Ensure you have Git installed to clone the project

Quickstart Guide

Run through the Quickstart to get your set up complete.

→

What You'll Build​

You'll construct a money transfer application from the ground up, learning to design and implement essential transactions such as withdrawals, deposits, and refunds using Temporal's powerful building blocks.

Why This Application? It demonstrates real-world complexity while teaching you how to build reliable, fault-tolerant systems that handle money safely.

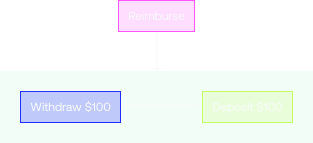

Money Transfer Application Flow

In this sample application, money comes out of one account and goes into another. However, there are a few things that can go wrong with this process. If the withdrawal fails, then there is no need to try to make a deposit. But if the withdrawal succeeds, but the deposit fails, then the money needs to go back to the original account.

One of Temporal's most important features is its ability to maintain the application state when something fails. When failures happen, Temporal recovers processes where they left off or rolls them back correctly. This allows you to focus on business logic, instead of writing application code to recover from failure.

Download the example application​

The application you'll use in this tutorial is available in a GitHub repository.

Open a new terminal window and use git to clone the repository, then change to the project directory.

Now that you've downloaded the project, let's dive into the code.

git clone https://github.com/temporalio/money-transfer-project-template-python cd money-transfer-project-template-python
tip

The repository for this tutorial is a GitHub Template repository, which means you could clone it to your own account and use it as the foundation for your own Temporal application.

Let's Recap: Temporal's Application Structure​

The Temporal Application will consist of the following pieces:

  1. A Workflow written in Python using the Python SDK. A Workflow defines the overall flow of the application.
  2. An Activity is a method that encapsulates business logic prone to failure (e.g., calling a service that may go down). These Activities can be automatically retried upon some failure. They handle individual tasks like withdraw(), deposit(), and refund().
  3. A Worker, provided by the Temporal SDK, which runs your Workflow and Activities reliably and consistently.

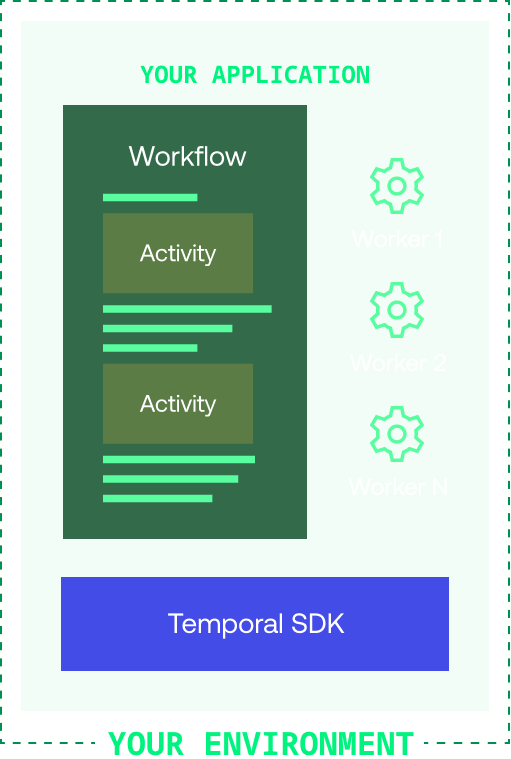

Temporal Application Components
Your Temporal Application
info

None of your application code runs on the Temporal Server. Your Worker, Workflow, and Activity run on your infrastructure, along with the rest of your applications.

Step 1: Build your Workflow and Activities​

Workflow Definition

A Workflow Definition in Python uses the @workflow.defn decorator on the Workflow class to identify a Workflow.

This is what the Workflow Definition looks like for this kind of process:

workflows.py

from datetime import timedelta
from temporalio import workflow
from temporalio.common import RetryPolicy
from temporalio.exceptions import ActivityError

with workflow.unsafe.imports_passed_through():
    from activities import BankingActivities
    from shared import PaymentDetails

@workflow.defn
class MoneyTransfer:
    @workflow.run
    async def run(self, payment_details: PaymentDetails) -> str:
        retry_policy = RetryPolicy(
            maximum_attempts=3,
            maximum_interval=timedelta(seconds=2),
            non_retryable_error_types=["InvalidAccountError", "InsufficientFundsError"],
        )

        # Withdraw money
        withdraw_output = await workflow.execute_activity_method(
            BankingActivities.withdraw,
            payment_details,
            start_to_close_timeout=timedelta(seconds=5),
            retry_policy=retry_policy,
        )

        # Deposit money
        try:
            deposit_output = await workflow.execute_activity_method(
                BankingActivities.deposit,
                payment_details,
                start_to_close_timeout=timedelta(seconds=5),
                retry_policy=retry_policy,
            )

            result = f"Transfer complete (transaction IDs: {withdraw_output}, {deposit_output})"
            return result
        except ActivityError as deposit_err:
            # Handle deposit error
            workflow.logger.error(f"Deposit failed: {deposit_err}")
            # Attempt to refund
            try:
                refund_output = await workflow.execute_activity_method(
                    BankingActivities.refund,
                    payment_details,
                    start_to_close_timeout=timedelta(seconds=5),
                    retry_policy=retry_policy,
                )
                workflow.logger.info(
                    f"Refund successful. Confirmation ID: {refund_output}"
                )
                raise deposit_err
            except ActivityError as refund_error:
                workflow.logger.error(f"Refund failed: {refund_error}")
                raise refund_error

Activity Definition

Activities handle the business logic. Each activity method calls an external banking service:

activities.py

import asyncio
from temporalio import activity
from shared import PaymentDetails

class BankingActivities:
    @activity.defn
    async def withdraw(self, data: PaymentDetails) -> str:
        reference_id = f"{data.reference_id}-withdrawal"
        try:
            confirmation = await asyncio.to_thread(
                self.bank.withdraw, data.source_account, data.amount, reference_id
            )
            return confirmation
        except InvalidAccountError:
            raise
        except Exception:
            activity.logger.exception("Withdrawal failed")
            raise

Step 2: Set the Retry Policy​

Temporal makes your software durable and fault tolerant by default. If an Activity fails, Temporal automatically retries it, but you can customize this behavior through a Retry Policy.

Retry Policy Configuration​

In the MoneyTransfer Workflow, you'll see a Retry Policy that controls this behavior:

workflows.py

# ...
retry_policy = RetryPolicy(
    maximum_attempts=3,                    # Stop after 3 tries
    maximum_interval=timedelta(seconds=2), # Don't wait longer than 2s
    non_retryable_error_types=[           # Never retry these errors
        "InvalidAccountError",
        "InsufficientFundsError"
    ],
)

What Makes Errors Non-Retryable?​

Without retry policies, a temporary network glitch could cause your entire money transfer to fail. With Temporal's intelligent retries, your workflow becomes resilient to these common infrastructure issues.

Don't Retry

  • InvalidAccountError - Wrong account number
  • InsufficientFundsError - Not enough money

These are business logic errors that won't be fixed by retrying.

Retry Automatically

  • Network timeouts - Temporary connectivity
  • Service unavailable - External API down
  • Rate limiting - Too many requests

These are temporary issues that often resolve themselves.

This is a Simplified Example

This tutorial shows core Temporal features and is not intended for production use. A real money transfer system would need additional logic for edge cases, cancellations, and error handling.

Step 3: Create a Worker file​

A Worker is responsible for executing your Workflow and Activity code. It:

  • Can only execute Workflows and Activities registered to it
  • Knows which piece of code to execute based on Tasks from the Task Queue
  • Only listens to the Task Queue that it's registered to
  • Returns execution results back to the Temporal Server

run_worker.py

import asyncio

from temporalio.client import Client
from temporalio.worker import Worker

from activities import BankingActivities
from shared import MONEY_TRANSFER_TASK_QUEUE_NAME
from workflows import MoneyTransfer


async def main() -> None:
    client: Client = await Client.connect("localhost:7233", namespace="default")
    # Run the worker
    activities = BankingActivities()
    worker: Worker = Worker(
        client,
        task_queue=MONEY_TRANSFER_TASK_QUEUE_NAME,
        workflows=[MoneyTransfer],
        activities=[activities.withdraw, activities.deposit, activities.refund],
    )
    await worker.run()


if __name__ == "__main__":
    asyncio.run(main())

Step 4: Define the Task Queue​

A Task Queue is where Temporal Workers look for Tasks about Workflows and Activities to execute. Each Task Queue is identified by a name, which you will specify when you configure the Worker and again in the code that starts the Workflow Execution. To ensure that the same name is used in both places, this project follows the recommended practice of specifying the Task Queue name in a constant referenced from both places.

Set Your Task Queue Name​

To ensure your Worker and Workflow starter use the same queue, define the Task Queue name as a constant:

shared.py

# Task Queue name - used by both Worker and Workflow starter
MONEY_TRANSFER_TASK_QUEUE_NAME = "MONEY_TRANSFER_TASK_QUEUE"
Why Use Constants?

Using a shared constant prevents typos that would cause your Worker to listen to a different Task Queue than where your Workflow tasks are being sent. It's a common source of "Why isn't my Workflow running?" issues.

Step 5: Execute the Workflow​

Now you'll create a client program that starts a Workflow execution. This code connects to the Temporal Service and submits a Workflow execution request:

start_workflow.py

import asyncio
from temporalio.client import Client
from workflows import MoneyTransfer
from shared import MONEY_TRANSFER_TASK_QUEUE_NAME

async def main():
    # Create the Temporal Client to connect to the Temporal Service
    client = await Client.connect("localhost:7233", namespace="default")

    # Define the money transfer details
    details = {
        "source_account": "A1001",
        "target_account": "B2002",
        "amount": 100,
        "reference_id": "12345"
    }

    # Start the Workflow execution
    handle = await client.start_workflow(
        MoneyTransfer.run,
        details,
        id=f"money-transfer-{details['reference_id']}",
        task_queue=MONEY_TRANSFER_TASK_QUEUE_NAME,
    )

    print(f"Started Workflow {handle.id}")
    print(f"Transferring ${details['amount']} from {details['source_account']} to {details['target_account']}")

    # Wait for the result
    result = await handle.result()
    print(f"Workflow result: {result}")

if __name__ == "__main__":
    asyncio.run(main())

This code uses a Temporal Client to connect to the Temporal Service, calling its workflow start method to request execution. This returns a handle, and calling result on that handle will block until execution is complete, at which point it provides the result.

Run Your Money Transfer​

Now that your Worker is running and polling for tasks, you can start a Workflow Execution.

In Terminal 3, start the Workflow:

The run_workflow.py script starts a Workflow Execution. Each time you run this file, the Temporal Server starts a new Workflow Execution.

Workflow Status: EXECUTING
Withdraw Activity: RUNNING
Deposit Activity: RUNNING
Transaction: COMPLETED
Terminal 1 - Start the Temporal server:
temporal server start-dev
Terminal 2 - Start the Worker:
python run_worker.py
Terminal 3 - Start the Workflow:
python run_workflow.py
Expected Success Output:
Result: Transfer complete (transaction IDs: Withdrew $250 from account 85-150. ReferenceId: 12345, Deposited $250 into account 43-812. ReferenceId: 12345)

Check the Temporal Web UI​

The Temporal Web UI lets you see details about the Workflow you just ran.

What you'll see in the UI:

  • List of Workflows with their execution status
  • Workflow summary with input and result
  • History tab showing all events in chronological order
  • Query, Signal, and Update capabilities
  • Stack Trace tab for debugging

Try This: Click on a Workflow in the list to see all the details of the Workflow Execution.

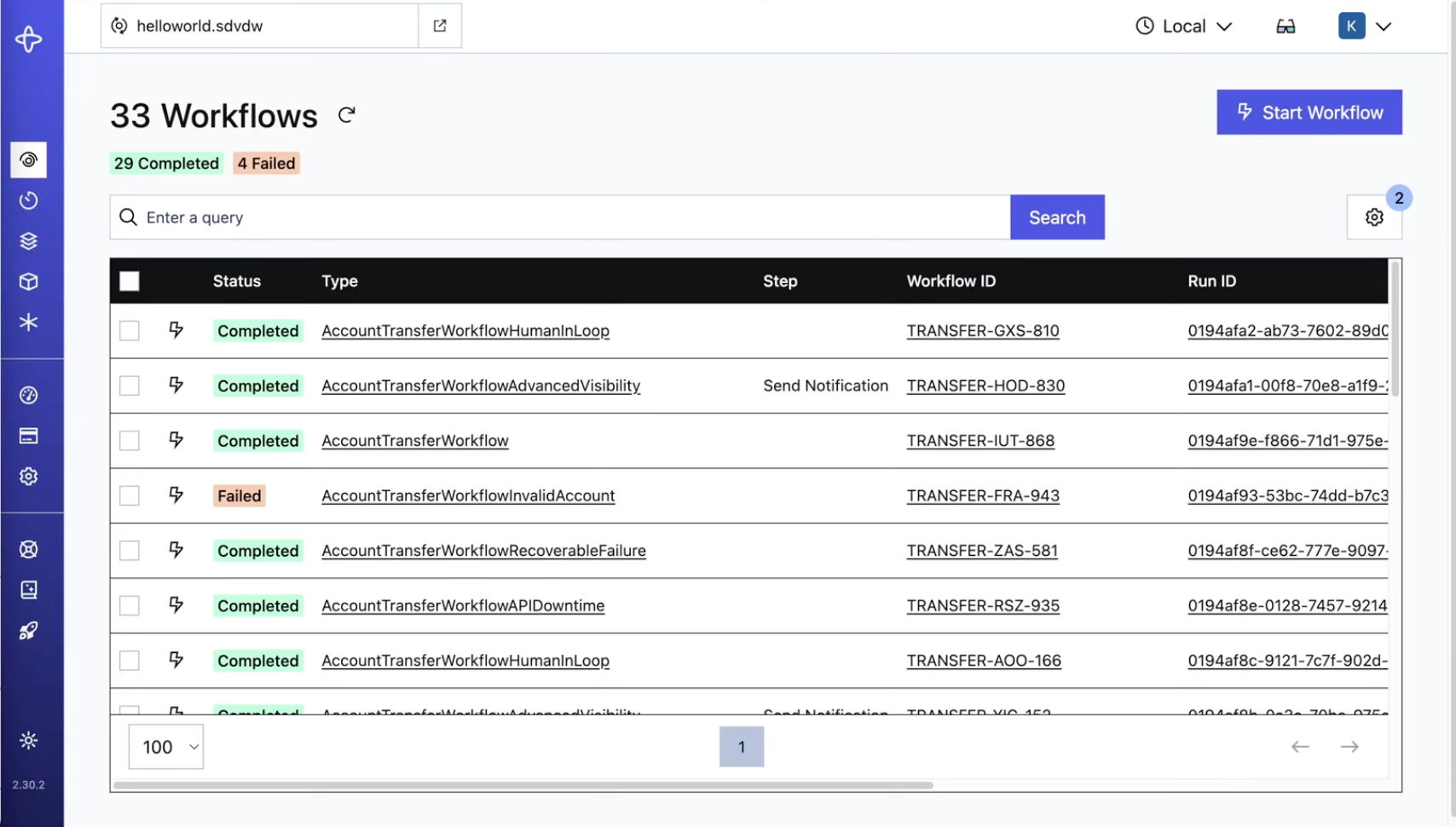

Open the Temporal UI

View the state of the Workflow with the Temporal Web UI

→
Money Transfer Web UI

Ready for Part 2?​

Continue to Part 2: Simulate Failures

Simulate crashes, fix bugs in running workflows, and experience Temporal's reliability superpowers
